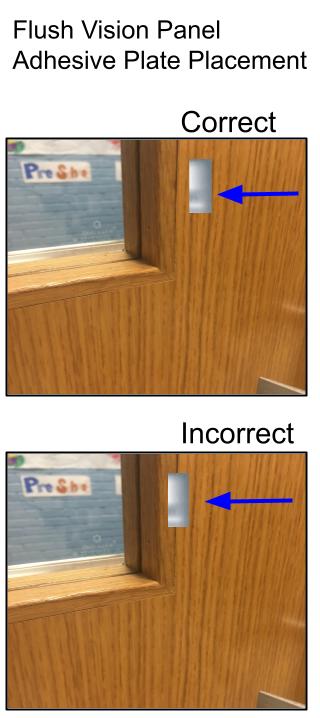

Correct vs. Incorrect Adhesive Plate Placement for Flat or Flush Vision Panel
When adhesive plates are applied to doors they should be pressed into place firmly and onto a completely flat surface. All of the adhesive should make contact with the door and not overlap the interior frame that holds the glass in.
Correct placement: When applied properly, the steel plates should sit flat. If these steel adhesive plates are put into place with good pressure on a flat clean surface they will stay put indefinitely.
Incorrect placement: This photo depicts improperly applied adhesive plates. The plates shown are installed over the seam of the frame which in some cases can work but is not the best placement. If needed, remove the shutter and realign so the steel plates can sit correctly.
Magnetic Contact Points
#1. Multi Fold Shelter Shutters have magnets inside the top, bottom and side that contact with the shutter and on steel adhesive plates.
(marked below by smiley ☺)
#2. Multi Fold Shelter Shutters have magnets inside the top, bottom and side that contact with the shutter and on metal frames.
(marked below by smiley ☺)

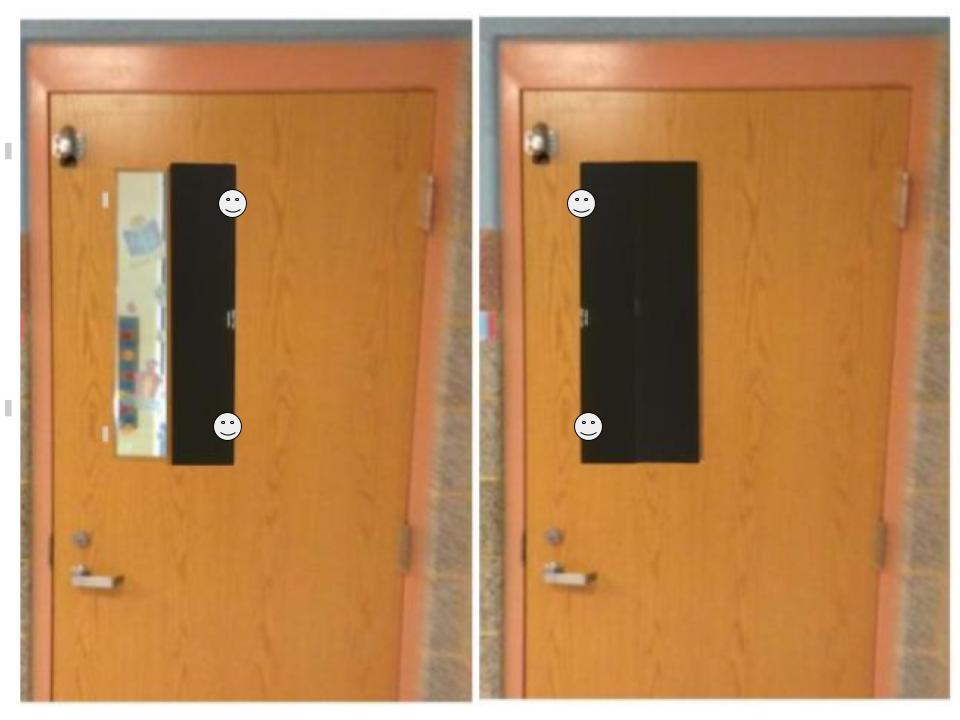

#3. Single Fold Shelter Shutters have magnets inside the edge that contact with the shutter material and on steel adhesive plates
(marked below by smiley ☺)
#4. Single Fold Shelter Shutters have magnets inside the edge that contact with the shutter material and on metal frames.
(marked below by smiley ☺)
Multi Fold Overcoming Push Bars and Door Closers main photo

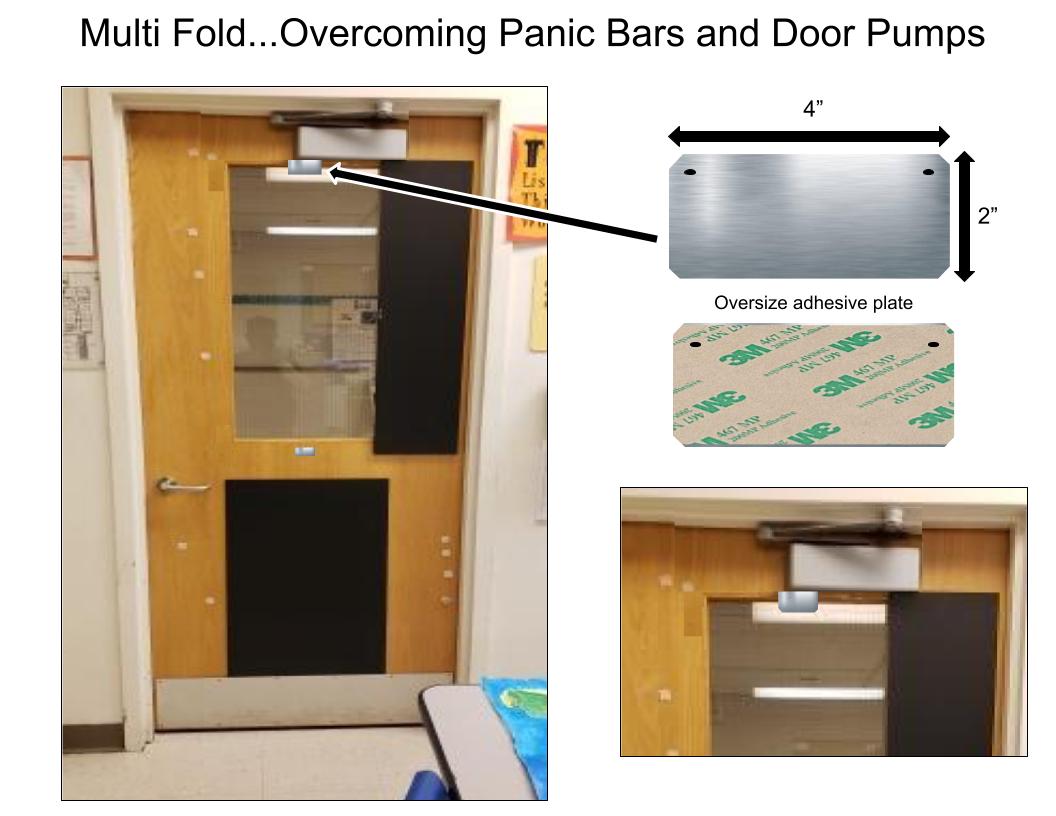

Solution #1 –Oversized adhesive plates can be applied with half or more of the plate extending into the glass area if necessary. (screws are supplied to secure it if less than half of the plate is contacting the door surface)

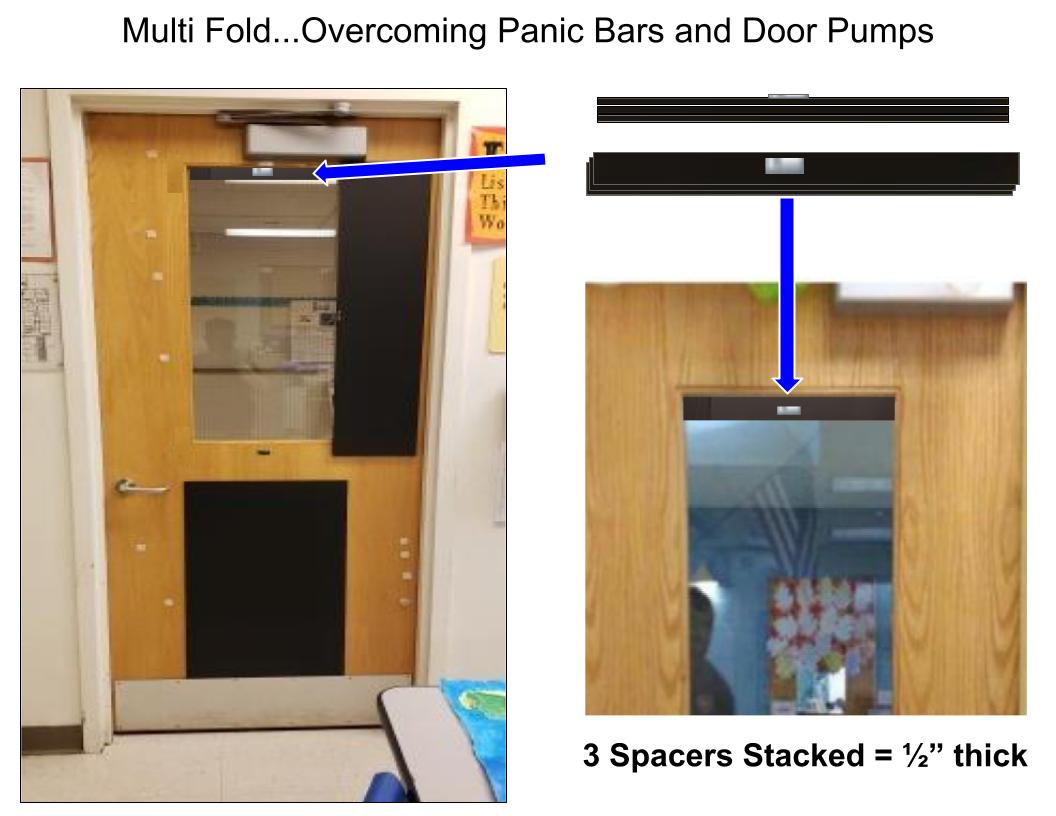

Solution #2 – Spacers & Standard Plate
Spacers can be used on the glass to fill in the recess that will accept our standard size adhesive plates. Cut three to four spacers the width of the glass. Stack spacers together and use clear double face tape to apply the stacked spacers to the glass (to make surface flush with door) When spacers are stacked and surface is flush with door, a standard sized adhesive plate can be added to engage the top shutter magnet.
Measuring Instructions
Easy Measuring and Installation Instructions
Use these forms to take measurements from inside the room. Download the form that best corresponds with your door or sidelight. Your school may have a combination of door windows so it’s a good idea to download them all and make copies if needed.
Door Glass Blueprint
Choose the form that best matches your door.
Left or Right Vision Panel (Ends Below Handle)
Below Handle Vision Panel Blueprint
Center Vision Panel
Left or Right Vision Panel (Ends Above Handle)
Above Handle Vision Panel Blueprint
Side Light Blue Prints
Choose the form that best matches your door.
Side Light Type 1
Side Light Type 2
Side Light Type 3
Contact our warehouse if you have any questions.
Measuring Videos
Disclaimer: If the bottom of your window is higher than 48 inches from the floor, your shutters can be made longer to meet ADA standards.
